ADC/MCA is a fast pulse height analysis analog-to-digital converter (PHA ADC) with integrated Multichannel Analyzer. The ADC has a fixed conversion time of 390ns and incorporates a special differential non-linearity (DNL) improvement circuit. Automatic peak detection ensures stable operation at different shaping times. Integrated multichannel analyzer (MCA) is capable of capturing 1k, 2k, 4k and 8k spectra. It also has a MCS (Multi-Channel Scaler) alternate functionality. This functionality is software enabled/disabled and uses the same analog input for pulse counting.

Two main ADC/MCA modifications are available - stand alone device, powered by line adapter and OEM kit - ideal for integration into custom-made equipment. In addition to this, a number of standard connectivity choices exist - USB, Ethernet and RS232. This high-performance Multichannel Analyzer system is ideally suited for high count rate capable Silicon Drift Detectors.

In addition to high performance hardware, a simple to use MS Windows based Analysis Software is available.

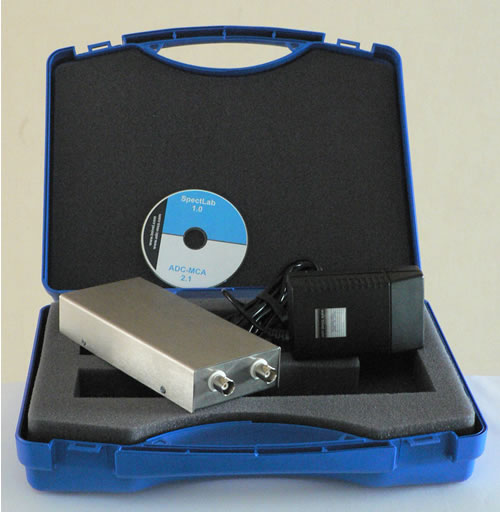

Multichannel Analyzer - Analog Digital Converter - stand alone device.
Multichannel Analyzer - Analog Digital Converter - stand alone device.

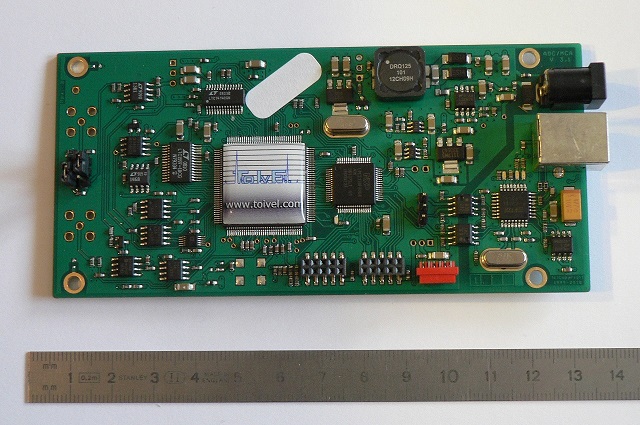

Multichannel Analyzer - Analog Digital Converter - OEM version.
Multichannel Analyzer - Analog Digital Converter - OEM version.

Performance characteristics:
Resolution 8192 (4096 optional) data channels
ADC type successive approximation, sliding scale linearization
ADC conversion time (fixed) 390 ns
Integral non-linearity < � 0.04 %
Differential non-linearity < 0.5 %

Analog input specifications:
Pulse form gaussian
Signal shaping time 0.15 �s to 20 �s
Dynamic input range 0 to +5 V (optional 0 to +2.5 V)

Mechanical and environmental:
Dimensions 140 x 60 x 20 mm
Weight 80 g
Operating temperature 0 to +70� C

Power requirements:
Supply voltage / current +5 V / 450 mA from USB
Alternative supply + 12 V / 180 mA

Gate input specifications:
Pile-up rejector logic level TTL (LVTTL)
Gated operation logic level TTL (LVTTL)

Serial interface specifications:
Memory size 4k x 16 static RAM
USB transfer speed 1.5 Mbaud

Electrical interface:
Coaxial connectors PHA input, Pile-up input
JST connector +12v, GND
10-pin feature connectors +3.3v, GND, feature-specific signals
USB connector B type

Remote controls:
Lower level discriminator 0 to max scale (4096 steps)
Upper level discriminator 0 to max scale (4096 steps)
Dead-time detection level 0 to max scale (4096 steps)

Optional controls:
User-specific analog input 0 V to +2.5 V
SPI control LVTTL

Download datasheet:
adc_mca_mcs.pdf
